sewage

R-CMD-check Lifecycle: experimental

The goal of sewage is to provide a light-weight pipelining interface for data analyses. Rather than construct long scripts with intermiediate datasets or processes, you can construct a single pipeline and run it in a single call.

Installation

To download the latest stable release

install.packages("sewage")

Or, you can install the development version of sewage from Github:

devtools::install_github("mwhalen18/sewage")

Example

Below is an example of how to construct a simple pipeline.

library(sewage)

You can use any function as a component in the pipeline, including custom functions you define or import from an external source.

subset_data = function(x) {
  subset(x, cyl == 6)
}
summarizer = function(x) {
  return(summary(x[['disp']]))
}

Currently, there are 3 components ready for use: Nodes, Splitters, and Joiners. Nodes take one object as input and return exactly one object. Splitters take in exactly one object and may return any number of outputs greater than 1. Joiners take in multiple objects and return 1 object according to the method you pass to the Joiner (More on these components below).

pipeline = Pipeline()
pipeline = pipeline |>
  add_node(component = readr::read_csv, name = "Reader", input = "file", show_col_types = FALSE) |>
  add_node(component = Splitter(), name = "Splitter", input = "Reader") |>
  add_node(component = subset_data, name = "Subsetter", input = "Splitter.output_2") |>
  add_node(component = summarizer, name = "Summarizer", input = "Splitter.output_1")
pipeline
#> ══ Pipeline ════════════════════════════════════════════════════════════════════
#> 4 node(s):
#>  Reader <-- Input: file
#>
#>  Splitter <-- Input: Reader
#>
#>  Subsetter <-- Input: Splitter.output_2
#>
#>  Summarizer <-- Input: Splitter.output_1

Note outputs of a Splitter are accessible by specifying the name of the splitter component (In this case Splitter) suffixed with the outgoing edge in the format {name}.output_{i}.

The first node in your pipeline should specify the argument that will be passed into the pipeline when we execute it (More on this below).

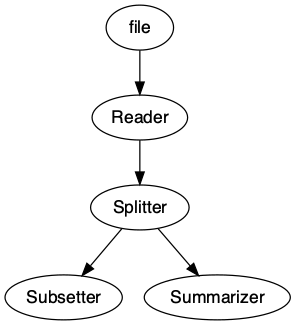

We can easily visualize our pipeline using the draw method.

draw(pipeline)

Here we execute the pipeline with the run command. It is important to note that the argument you pass to run should match the input argument of your first node in your pipeline. In this case we are passing a file argument in run and similarly our first node is set to receive a file argument as input.

You may choose any argument name you like, as long as these two arguments match!

result = run(pipeline, file = 'temp.csv')
#> New names:
#> • `` -> `...1`
print(result)
#> ══ Pipeline [executed] ═════════════════════════════════════════════════════════
#> 4 node(s):
#>  Reader <-- Input: file
#>
#>  Splitter <-- Input: Reader
#>
#>  Subsetter <-- Input: Splitter.output_2
#>
#>  Summarizer <-- Input: Splitter.output_1
#>
#>
#> 2 output(s):
#>  Subsetter
#>
#>  Summarizer

We can now access the results of our terminating nodes. A terminating node is any node that is not specified as input. By default when the pipeline is run, each node will overwrite the output of its input node. Therefore any node that is not fed forward to a new node will return output. In the case of this pipeline, the Subsetter and Summarizer edges are our terminating nodes. Therefore, we can access their results in the outputs object of the pipeline

pull_output(result, "Subsetter")
#> # A tibble: 7 × 12
#>   ...1           mpg   cyl  disp    hp  drat    wt  qsec    vs    am  gear  carb
#>   <chr>        <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl>
#> 1 Mazda RX4     21       6  160    110  3.9   2.62  16.5     0     1     4     4
#> 2 Mazda RX4 W…  21       6  160    110  3.9   2.88  17.0     0     1     4     4
#> 3 Hornet 4 Dr…  21.4     6  258    110  3.08  3.22  19.4     1     0     3     1
#> 4 Valiant       18.1     6  225    105  2.76  3.46  20.2     1     0     3     1
#> 5 Merc 280      19.2     6  168.   123  3.92  3.44  18.3     1     0     4     4
#> 6 Merc 280C     17.8     6  168.   123  3.92  3.44  18.9     1     0     4     4
#> 7 Ferrari Dino  19.7     6  145    175  3.62  2.77  15.5     0     1     5     6
pull_output(result, "Summarizer")
#>    Min. 1st Qu.  Median    Mean 3rd Qu.    Max.
#>    71.1   120.8   196.3   230.7   326.0   472.0

Multiple Entrypoints

It is also possible to pass in multiple entrypoints by specifying the inputs in your arguments. This allows you to process multiple documents and bring them together using a Joiner later in your pipeline.

The Joiner will take multiple inputs and convert them to a single output in the pipeline according to the function specified. This component works nicely for dplyr-like joins, but is not restricted to these methods.

library(dplyr)
pipeline = Pipeline()
pipeline = pipeline |>
  add_node(read.csv, name = "Reader", input = "file") |>
  add_node(subset_data, name = "Subsetter", input = "data") |>
  add_node(Joiner(method = dplyr::bind_rows), name = "Joiner", input = c("Reader", "Subsetter"))
output = run(pipeline, file = "temp.csv", data = mtcars)

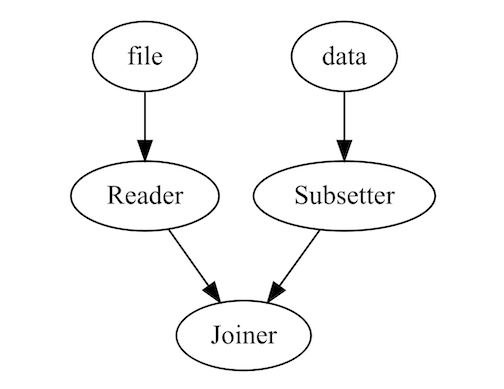

draw(pipeline)

Specifying entrypoints

One of the benefits of {sewage} is that we can pick the pipeline up at any point using the optional start and halt options in run. This means we can build an entire data pipeline, but test small sections. For example, we may want to pass data down one branch without running the entire pipeline.

pipeline = Pipeline()
pipeline = pipeline |>
  add_node(readr::read_csv, name = "Reader", input = "file", show_col_types = FALSE) |>
  add_node(Splitter(), name = "Splitter", input = "Reader") |>
  add_node(summarizer, name = "Summarizer", input = "Splitter.output_1") |>
  add_node(subset_data, name = "Subsetter", input = "Splitter.output_2") |>
  add_node(func1, name = "Func1", input = "Subsetter") |>
  add_node(func2, name = "Func2", input = "Func1") |>
  add_node(func3, name = "Func3", input = "Func2") |>
  add_node(func4, name = "Func4", input = "Func3") |>
  add_node(func5, name = "Func5", input = "Func4") |>
  add_node(func6, name = "Func6", input = "Summarizer")

result = run(pipeline, start = 'Subsetter', halt = "Func3", Splitter.output_2 = mtcars)
result
#> ══ Pipeline [executed] ═════════════════════════════════════════════════════════
#> 10 node(s):
#>  Reader <-- Input: file
#>
#>  Splitter <-- Input: Reader
#>
#>  Summarizer <-- Input: Splitter.output_1
#>
#>  Subsetter <-- Input: Splitter.output_2
#>
#>  Func1 <-- Input: Subsetter
#>
#>  Func2 <-- Input: Func1
#>
#>  Func3 <-- Input: Func2
#>
#>  Func4 <-- Input: Func3
#>
#>  Func5 <-- Input: Func4
#>
#>  Func6 <-- Input: Summarizer
#>
#>
#> 1 output(s):
#>  Func3

We see that the pipeline has stopped at the “Func3” node. Note we still have to pass the correct input name to the run command just as if it was the first node in the pipeline. Sewage pipelines are executed sequentially in the order you specify them in the pipeline. This means everything after your starting node will be executed and therefore must have an input at runtime. For more information, see the “Building Pipelines” vignette.

Conclusion

Using these three components (Nodes, Splitters and Joiners) you can construct complex data pipelines and run them in a single call. By leveraging the start and halt arguments not only can we construct large complex data pipelines, but we can isolate components of the pipeline making data scripts more modular and easier to maintain.
